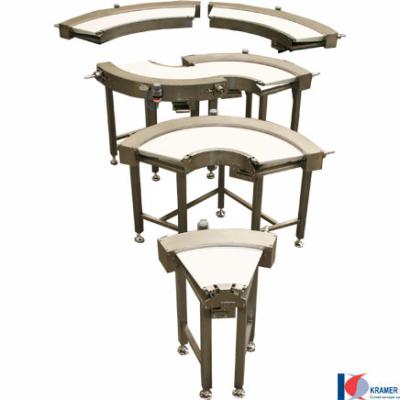

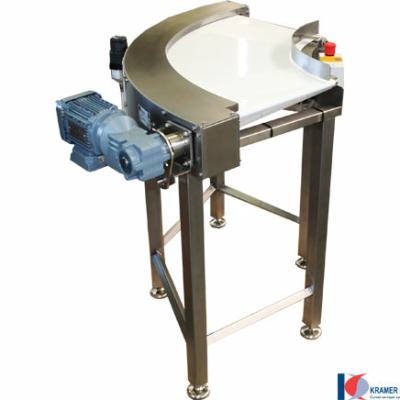

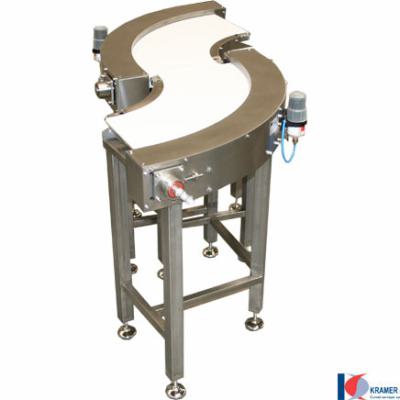

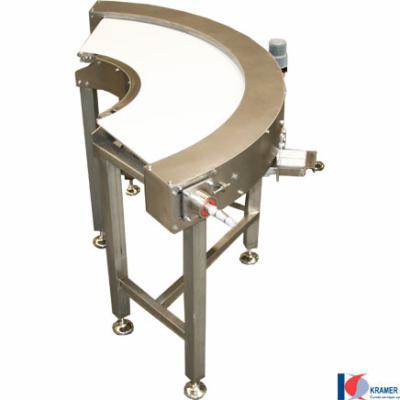

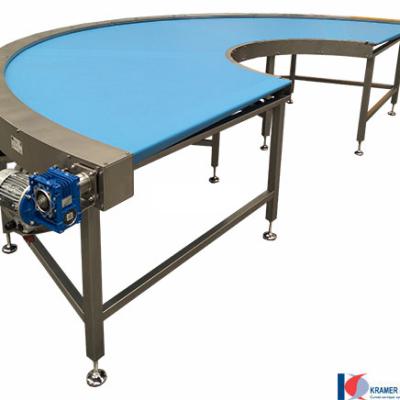

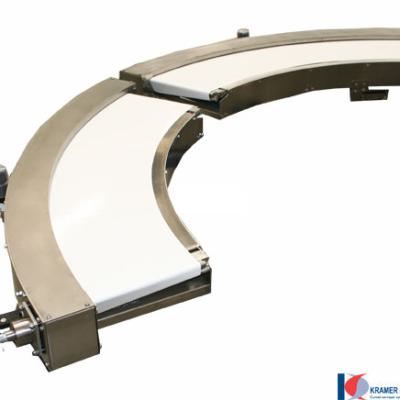

Curved conveyors Type BMK

The Kramer & Duyvis BMK belt bend has been specially developed for the transport of small, light products. The BMK round conveyor has a stainless steel frame and a cylindrical knife bar of Ø15 mm as standard. Depending on the weight, speed and belt width, you can choose for a rolling knife bar or a fixed knife bar.

Kramer Duyvis Product Catalogue

Kramer & Duyvis Product Catalogue

In our digital product catalogue, you will find all curved conveyors clearly bundled in one complete document. In addition to the models shown above, the flipbook includes extensive technical specifications, application examples, and practical guidelines. With the help of the selection matrix, you can quickly choose the right type for your environment, load capacity, and required speed. All customization options, drive variants, and configuration possibilities are clearly outlined. Ideal for engineers and system integrators who want to design and specify efficiently. Click on the image to open the full catalogue and start browsing online immediately.

Application conditions

In order to use the curved conveyor type BMK, your application must meet the following conditions to guarantee a long service life:

Environment: Dry and clean to slightly polluting

Load: Max. 50 kg

Speed: Max. 60 m/min (in the outer radius)

Roller diameter: Cylindrical Ø15 mm

Application form curved conveyor Type BMK

With the BMK, it is always built to customer specifications. The big advantage is that this round conveyor does not have to be a limitation in the production line. We can supply the BMK round conveyors in any desired angle from 35° to 180°. Belt width and radius is always customer specific.

Technical specifications

Basic: Stainless steel
Transport direction: CW (clockwise) or CCW (counter clockwise)
Belt width: Standard 200 - 1.500 mm

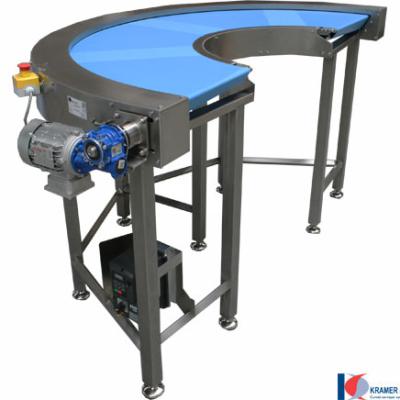

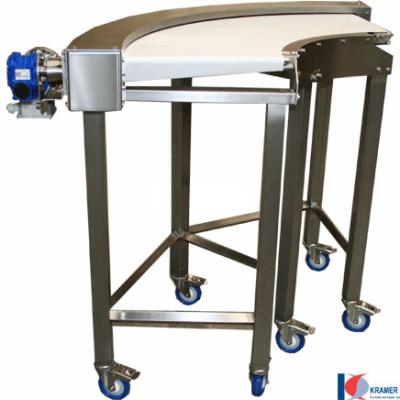

Angle: 35° - 180°
Roller diameter: Ø15 mm (cylindrical), fixed or with bearings
Minimal inner radius: 300 mm
Type of drive: Direct end drive
Motor position: Outer radius
Speed: Max. 60 m/min in the outer radius
Gearmotor: Standard 3x230/400V, 50 Hz, IP55
Belt material: Choice of various brands, materials and colors
Belt guide: By means of stainless steel springs that are hooked to a chain
Options:

Other brand or configuration of the gearmotor
Automatic lubrication system
Stainless steel bearings
Belt scraper
Support / legs
Side guide (fixed or adjustable)
Electrical control options

You can contact us for more information or to discuss your requirements.

Application form curved conveyor Type BMK

Curved belt conveyor Type BMK in the food industry

Online 3D configurator

The K&D Configurator 360 aims to quickly configure 3D models of curved conveyors and download them to use in your own 3D designs. The 3D models can be downloaded as a STEP, SAT or 3D DWG file.

Start your design here for Type BMK
